Application and characteristics of machine tool

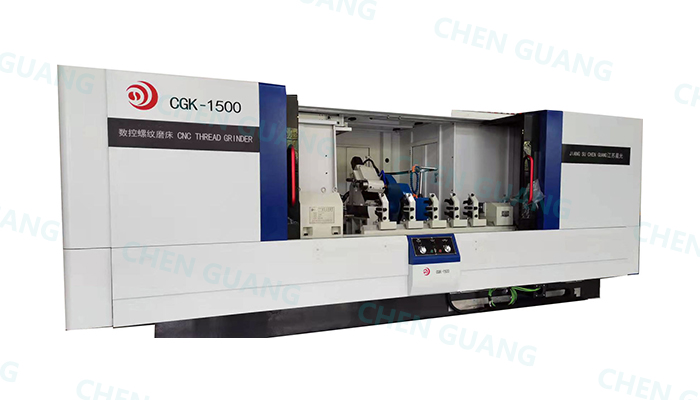

This machine is a high precision ball screw grinding machine specially developed for rolling functional parts industry. It is suitable for grinding high precision arc ball screw, high degree trapezoidal screw and other thread tooth shapes.

Transmission mode and grinding thread length:

Cgk-800 / 1500 / 2000 / 3000 {grinding thread length 1500 / 2000 / 3000mm) adopts mobile worktable

Siemens 828d / 840D numerical control system, Heidenhain grating ruler and Renishaw encoder are adopted to realize full closed-loop control. 9 operation interface adopts Chinese man-machine dialogue interface, menu input and easy operation.

The grinding mode adopts single pass grinding cycle, with the functions of full automatic cycle grinding, multi thread grinding, dynamic tool setting, pitch compensation, pitch taper compensation and automatic compensation of grinding wheel correction.

The main bed and worktable are made of high-strength alloy cast iron, the guide surface is scraped and grinded with high precision, and the mother screw and cross feed screw of the machine tool are made of imported high-precision grinding ball screw to ensure the accuracy and stability of movement.

The grinding wheel spindle adopts imported high precision rolling bearing, which has high rotation precision, rigidity and wear resistance.
